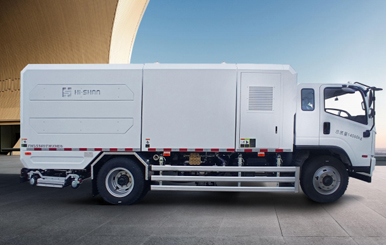

FHS5140TWXHE6 is a newly developed road pollution removal vehicle by our company that integrates deep cleaning and solid waste collection. It can completely solve the problem of existing equipment being unable to effectively remove and recover pollutants such as road scale, compaction, and oil pollution. It can curb road dust from the source and achieve the goal of "sitting on the ground, seeing the true colors of the road".
The vehicle adopts a modern Hongtu 14T chassis and is modified using innovative high-pressure water air jet technology, ultra clean vacuum recovery technology, and other technologies. The car has diverse functions, simple operation, and high reliability. Key supporting components such as hydraulic pumps, hydraulic motors, high-pressure water pumps, pneumatic components, and electrical components are all sourced from well-known domestic and foreign brands. The vehicle is equipped with a simple boom, which can quickly suck up roadside garbage and leaves, and clear blocked drainage pipes. The vehicle comes standard with four functions: deep removal of road pollution, removal of pollution from curb and curbstone facades, quick cleaning of roads, and collection of block shaped garbage. Other functions such as handheld cleaning discs can be optionally selected.
Scope of application:
? Suitable for deep removal of heavily polluted roads such as municipal roads, airports, docks, freight yards, power plants, steel mills, mines, etc. due to scale, compaction, and oil pollution;
? Restoration of drainage pavement function;
? Deep removal of road surface contaminated with toxic substances such as nuclear and biochemical substances;
? Road cleaning after flood and other disaster rescue operations.
Product advantages:
? Pioneering EHP high-pressure water air jet technology, utilizing a variable speed rotating high-pressure water jet for the removal of ground pollutants. The jet pressure is infinitely adjustable, with a standard water pressure of up to 300 bar, which can thoroughly remove road debris, crevice deposits, and various pollutants on the road;
? Ultra clean vacuum recycling has outstanding cleaning effect on road surfaces, which can completely and thoroughly remove road dirt, silt, oil stains, heavy metals, and no residual or leaked sewage;
? Hydrostatic walking drive, operating speed 0~10km/infinitely adjustable, with ultra-low speed cruise control function;
? Adopting a single engine design, the entire vehicle has a National VI emission standard and outstanding environmental performance;
? Equipped with permeable/drainage road function restoration function, the product's operating effect far exceeds similar foreign products;
? Multiple homework modes, powerful clearing; Deep clearance; Clearing of curbstones and curbstone facades; Quick cleaning; Arm suction; Optional handheld cleaning tray with powerful functionality;
? The structure of the high-pressure jet cleaning device is advanced, and the structure of the material storage system is advanced;
? Multi functional: equipped with deep cleaning and emergency quick cleaning modes, safe and reliable;
? Intelligent and user-friendly operation: optional PM2.5 and PM10 automatic real-time pollution monitoring system。
| Parameter Item | Parameter Value |
| Vehicle dimensions (length x width x height) (mm)（mm） | 8140×2400×2860 |
| Maximum mass （kg） | 14060 |
| Clear water tank capacity（m3） | 5.5 |
| Sewage tank capacity（m3） | 6 |
| Maximum pressure of high-pressure jet（MPa） | 30 |
| Homework speed（km/h） | Depth clearing0-10 |
| Job width（mm） | 2300 |
| Horizontal shift operation（mm） | ±300/350 |
| Chassis brand | Heavy Duty Truck |
| Chassis specifications | 4x2 |
| Rated power of engine （kW） | 162 |
| Emission standards | NationalVI |
Note: The above parameters are for reference only
